Most motherboards have four RAM slotsRAM slots (A2 / B2): The memory sockets on the motherboard. With two modules, the manual usually recommends the 2nd and 4th slots. More in our RAM & storage glossary →, and with two modules it’s tempting to put them side by side. On most motherboards that’s the wrong choice: they end up sharing one channel and the memory works at about half its bandwidth. The fix takes a minute, and you don’t need any tools beyond your hands.
Quick fix
The short answer for most four-slot motherboards:
- Two modules: the 2nd and 4th slots counting from the processor, labeled A2 and B2. See what it means.
- One module: usually A2. Four modules: all four slots. See the details.
- Push each module in firmly until both clips snap shut. See the steps.
- Check it worked: CPU-Z should show dual channelDual channel: Two RAM modules working side by side, which roughly doubles memory bandwidth. It needs the right slots. More in our RAM & storage glossary →. See the steps.
Always check your motherboard manual: a few motherboards differ. Want to see what others ran into? Read 3 real cases from PC forums.
Which RAM slots to use
Typical four-slot motherboard, seen from above. The slot names are printed next to each slot; check your manual.
- Two modules: the 2nd and 4th slots, counting from the processor (A2 and B2). This runs them in dual channel.
- Four modules: fill all four slots. Four modules may need a slightly lower speed.
- One module: usually A2. It works, but runs in single channel, which is slower.
Avoid: two modules side by side (A1 + A2, or B1 + B2). On most motherboards they then share one channel, and the RAM works at about half its bandwidth.
Where should your modules go?
| How many modules | Which RAM slots | Where to look |
|---|---|---|
| 2, on a motherboard with only 2 slots | Both slots | Step 1 |
| 2 | A2 and B2: the 2nd and 4th from the processor | Step 2 |
| 1 | Usually A2 (single channel, slower) | Step 3 |
| 4 | All four slots | Step 3 |
| A RAM slot that doesn’t seem to work | Test each module in A2 | Step 6 |

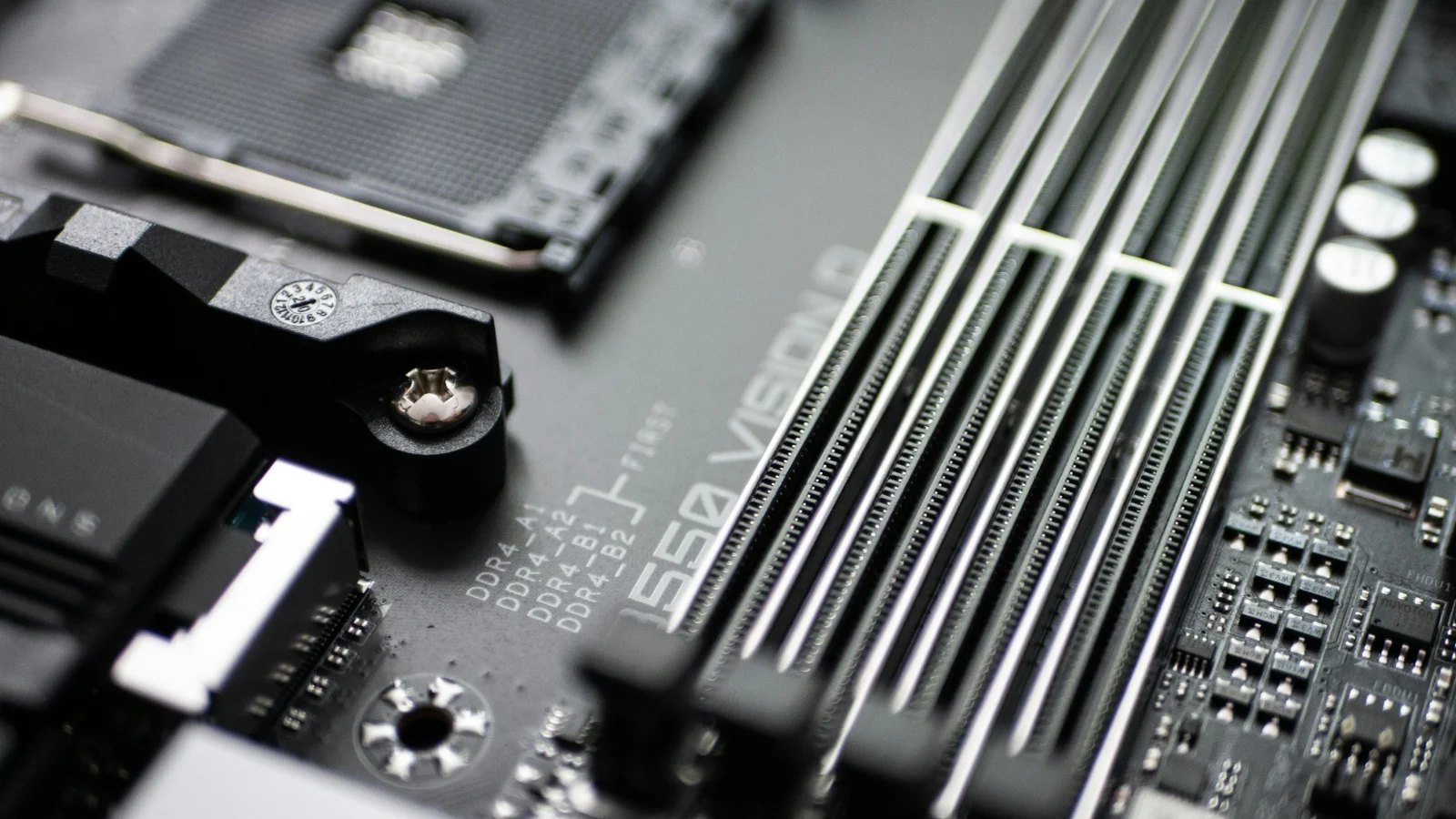

1. Find the slot labels on your motherboard
Look closely at the motherboard next to the RAM slots: each one has a small printed label, such as DIMM_
Small motherboards (mini-ITX) often have only two slots: use both, and they’re already in dual channel.
2. Two modules: use A2 and B2
Desktop processors talk to RAM through two channels, A and B. One module in each channel lets both work at the same time, called dual channel, which roughly doubles memory bandwidth.
- A2 + B2 (2nd and 4th slots): one module per channel. This is what almost every manual recommends.
- A1 + B1: also one per channel and usually works, but many motherboards are designed for A2/B2, and they tend to run higher speeds more reliably there.
- A1 + A2, or two modules side by side: on most motherboards both modules share one channel. The PC works, but slower.
3. Use the right slots for one or four modules
One module: it works, but only in single channel. Use the slot the manual recommends, usually A2. If you can, a kit of two smaller modules is faster than one large module.
Four modules: fill all four slots. Two things to know:
- Four modules are harder for the processor to run at high speed. Many PCs need a slightly lower speed with four than with two, especially with fast DDR5.
- Buy one kit of four rather than two kits of two. Separate kits may not run together at the rated speed even if they’re the same model.

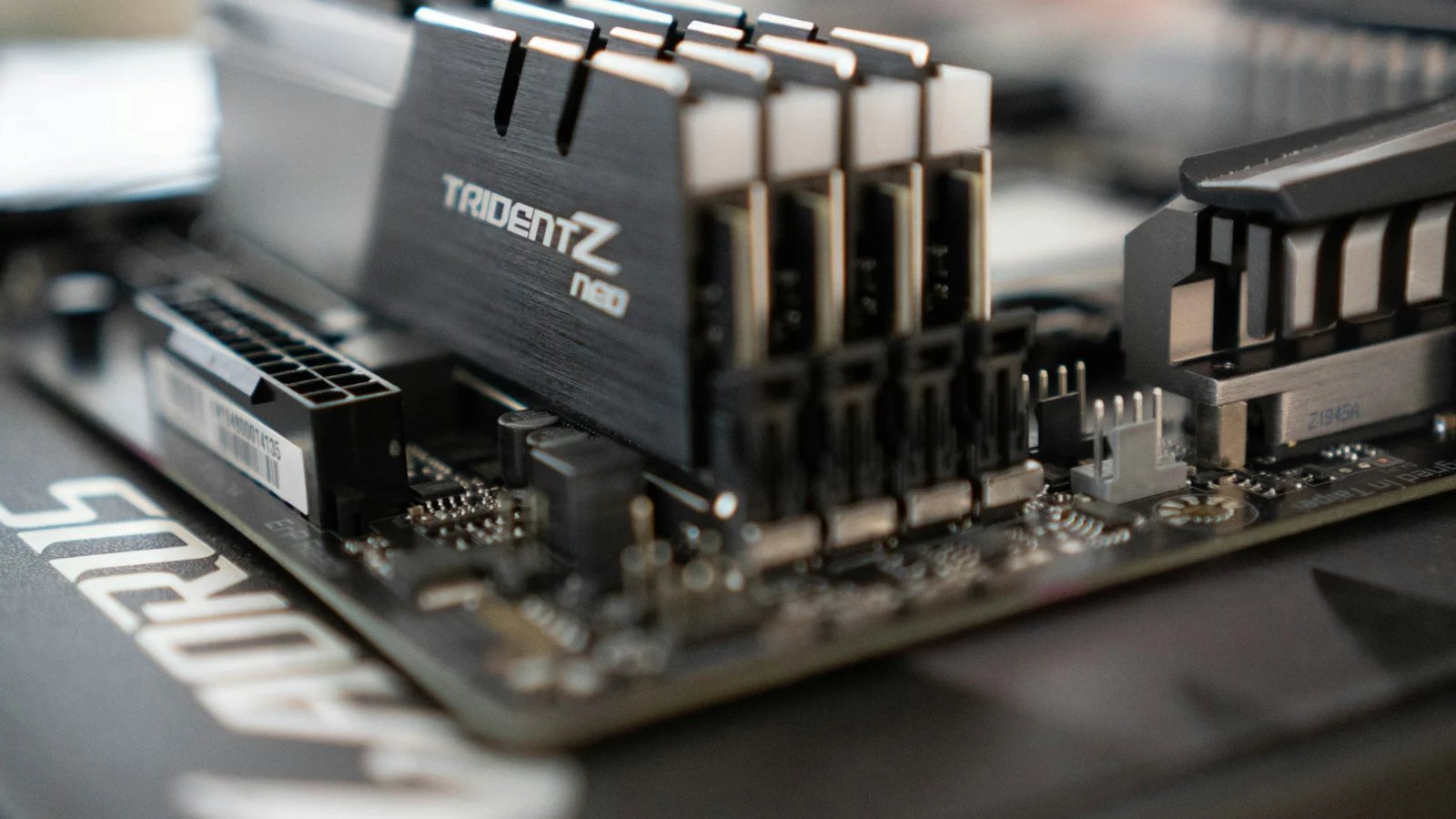

4. Install the modules properly
- Switch off and unplug the PC, and touch a metal part of the case to release static.
- Open the clips at the ends of the slot (on some motherboards there’s only one clip, at one end).
- Line up the notch on the module with the bump in the slot: it only fits one way.
- Press down firmly with both thumbs until the clips snap shut by themselves. It takes more force than most people expect. Here’s how to reseat RAM properly if you’re unsure.
The first start after changing RAM can take a few minutes with a black screen while the motherboard runs memory trainingMemory training: A test the PC runs on new RAM during the first startup. The screen can stay black for a few minutes. More in our RAM & storage glossary →. That’s normal.
5. Check the RAM is working in dual channel
- Task Manager (Ctrl + Shift + Esc) → Performance → Memory: “Slots used” should show the number of modules you installed, and the total should match. It doesn’t show channels, though.
- CPU-Z (free) → Memory tab → Channel #: it should say Dual, or on DDR5 4 × 32-bit. “Single” or “2 × 32-bit” with two modules means they’re sharing one channel: check the slots.

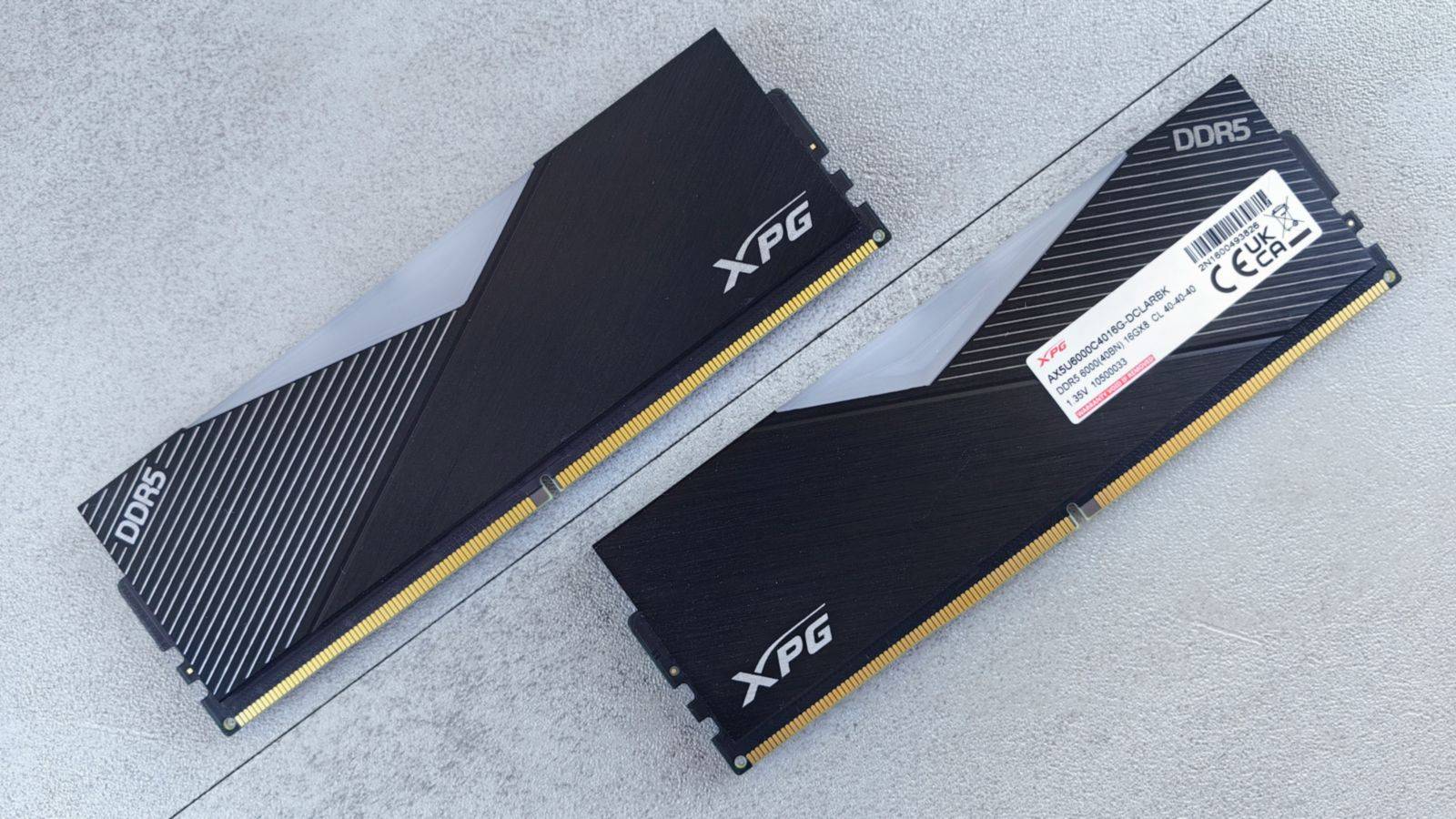

While you’re there, check the speed too: if it’s around 4800 on DDR5 or 2133 on DDR4, you still need to enable XMP or EXPO to get the speed on the box.
6. Test a slot that doesn’t seem to work
If the PC only starts with RAM in some slots, or shows the DRAM light (see what the debug lights mean):
- Test each module on its own in A2. If one module never works, the module is likely faulty.
- Test a known-good module in each slot. If one slot never works, the problem is the motherboard or the processor.
- A cooler screwed down very tightly or unevenly, or bent pins in the processor socket, can make some memory slots stop working. If the problem started after installing or remounting the cooler, loosen it evenly and check the socket.
If a slot still won’t work at default settings, contact the seller or the motherboard maker for a repair or replacement.
Real cases: what other users ran into
These are real reports from PC forums, summarized in our own words, with a link to each original thread.
Real caseGigabyte X570 UD · Corsair Vengeance 2×16 GB DDR4-3000Solution not confirmed by the userBlue screens with RAM in A1 and B1
The owner had his two modules in A1/B1 and had three blue screens while gaming. He noticed the manual asked for A2/B2 for the best dual-channel performance and asked why. Replies said both pairs work but the motherboard is designed around A2/B2, and to follow the manual. He moved the modules and noticed no speed difference; he hoped the blue screens would stop but didn’t report back.
Takeaway: when the manual names specific slots, use them. See step 2.
Source: Tom's Hardware Forum
Real caseCore i5-13600K · ASUS ROG Strix Z790-A Gaming WiFi D4Solved by replacing hardwareTwo RAM slots stopped working after remounting the cooler
The PC wouldn’t start with RAM in either of the first two slots, stopping on the RAM light; the other two slots worked, but only in single channel. A BIOS update and repeated reseating didn’t help. The owner returned the motherboard and concluded it had been damaged while he mounted the cooler several times. He bought a new motherboard.
Takeaway: if slots stop working after removing or refitting the CPU cooler, the mounting may be the cause. See step 6.
Source: ROG Forum
Real caseRyzen 7 9700X · ASUS TUF Gaming B850-Plus WiFi · 2× Kingston Fury 2×16 GB DDR5-6000Not solved by the userRAM only worked in A2 and B2, never in all four
Two identical kits worked fine in A2/B2, but any module in A1/B1 lit the orange DRAM light, and all four modules never started, even after waiting 20–25 minutes with EXPO off. A moderator confirmed A2/B2 is the recommended pair, and another member noted the motherboard’s compatibility list showed no tested four-module kits. The owner returned one kit and planned to buy two larger modules instead.
Takeaway: two larger modules in A2/B2 are the most reliable setup, especially with DDR5. See step 3.
Source: ROG Forum
Frequently asked questions
Does it matter which RAM slots I use?
Yes. With two modules, the wrong pair can halve memory bandwidth or make the PC less stable. Use the slots in your manual, usually A2 and B2.
Is A1 or A2 closer to the processor?
On most motherboards A1 is the closest. The labels are printed on the motherboard, so check before installing.
Is dual channel really faster?
Yes, noticeably in many games and especially with integrated graphics. In games it often shows up as short freezes. Two 8 GB modules are usually faster than one 16 GB module.
Can I use three RAM modules?
It usually works, but part of the memory runs in single channel. Two or four modules are better.
Is it OK to add two more modules to my existing two?
It may work, but mixed kits and four modules are the most common cause of RAM problems. If you need more memory, two larger modules from one kit are the safest choice.
